How To Replace Strimmer Wire

Whether you have a standard, cordless or petrol strimmer, there will eventually be a time where you’ll need to replace the strimmer wire. Within this article, we walk you through how to do it with step-by-step instructions and photos at each stage.

Tweet Pin It
How To Replace Strimmer Wire
Darimo is reader-supported and we may earn an affiliate commission if you buy through links on our site. Find out more.

Unless you are frequently checking the length of the wire in your strimmer, it’ll often need a replacement when you least expect it. Luckily, the process of replacing strimmer wire isn’t too difficult and its a similar method for most models. To help you along the way, below we walk you through the entire process of how to replace strimmer wire.

New Line vs Pre-Wound Spool

Before you begin to fit any strimmer wire, you’ll have the option of using a pre-wound spool or a new line into your existing spool. We personally prefer to spend the extra on a pre-wound spool (as shown by the right spool in the picture below) but if you are on a tight budget and have spare time, a new line into an existing spool is recommended.

If you opt to use a new line into an existing spool, you’ll need to ensure that you wrap the wire around the spool correctly. To do this, you’ll want to pay attention to the direction of the arrow printed onto the spool (as shown on the top of the spools in the photo). You’ll also need to ensure that you wrap the wire tightly around the spool and that it doesn’t have any twists because this can make extending the wire difficult. Depending upon whether you are using a single or double line strimmer, you’ll then need to pull the line out of the slots so that its ready for action.

Although it’s cheaper to replace the line in an existing spool, if you have the option of a pre-wound alternative, we would highly recommend purchasing it as it saves a lot of time and hassle.

how to change strimmer wire

How To Replace Strimmer Wire


1. Check The Attachment

To begin replacing strimmer wire, you’ll firstly need to remove the spool that contains the wire. Depending upon your model, this can either be a simple push fitting or one that requires a spanner to unscrew the bolt connecting the spool to the strimmer.

Usually, most heavy duty/commercial strimmers use a bolt to attach the spool to the shaft of the strimmer whereas most cordless/low powered alternatives use push fittings.

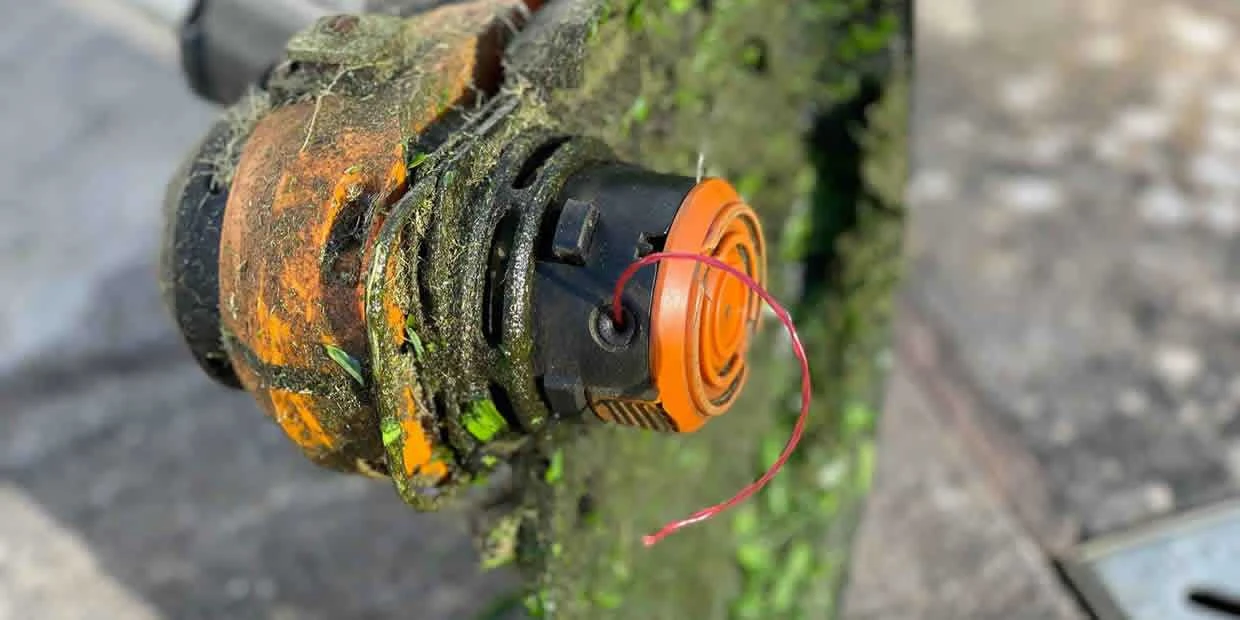

In this particular example, our cordless strimmer (the popular WORX WG163 model) featured a simple push fitting that was very simple to remove in order to gain access to the strimmer wire.

how to fit strimmer wire

2. Remove The Spool From The Strimmer

Once you can see how the spool is connected, proceed to removing it from the strimmer. Whilst you are removing the spool, pay attention to how its attached in terms of its direction because you’ll need to replicate how its attached with the new strimmer wire installed. To ensure that you don’t forget, taking a photo on your phone is a good way to see how its attached when you get round to fitting the new strimmer wire.

After you’ve disconnected the spool, it’s a good time to remove any debris that’s found its way behind the spool. Although this is an optional step, it’s good practice to ensure maximum efficiency of your strimmer.

how to put strimmer wire on

3. Add Strimmer Wire To The Spool or Replace With A Pre-Wound Spool

If you are using your existing spool, you can proceed to wrapping the new strimmer wire into the spool. However, if you are using the easier method of replacing the spool with a pre-wound alternative, you can skip this step.


4. Attach To The Spool To The Strimmer

With the new strimmer wire wrapped into the existing spool or the new pre-wound spool to hand, you can continue to attaching it to the strimmer. When you attach it, it should click in place and feel fairly sturdy without any movement. Depending upon the model of strimmer you own, you may also need to thread the wire into a slot (as shown in the photo of our strimmer).

Once you are happy that the spool is in place, you can attach any covers that go over the top of the spool or tighten any bolts to keep it in place.

how to put wire in strimmer

5. Test The New Strimmer Wire

With the new strimmer wire in place, test that the strimmer is working as it should and that you are able to trim grass with ease. It’s also advised that you check to see if you can extend the strimmer wire and that it’s not tangled inside of the spool. If you find that this is the case, you may need to check that you’ve wrapped the line correctly within the spool and that it has been installed in the correct direction.


Conclusion

Hopefully the above tutorial of how to replace strimmer wire has answered all your questions. It’s a relatively straightforward task and it should take just a few minutes as long as everything goes to plan. However, if you feel that you need further help, feel free to get in touch and we will try to provide our assistance where possible.
